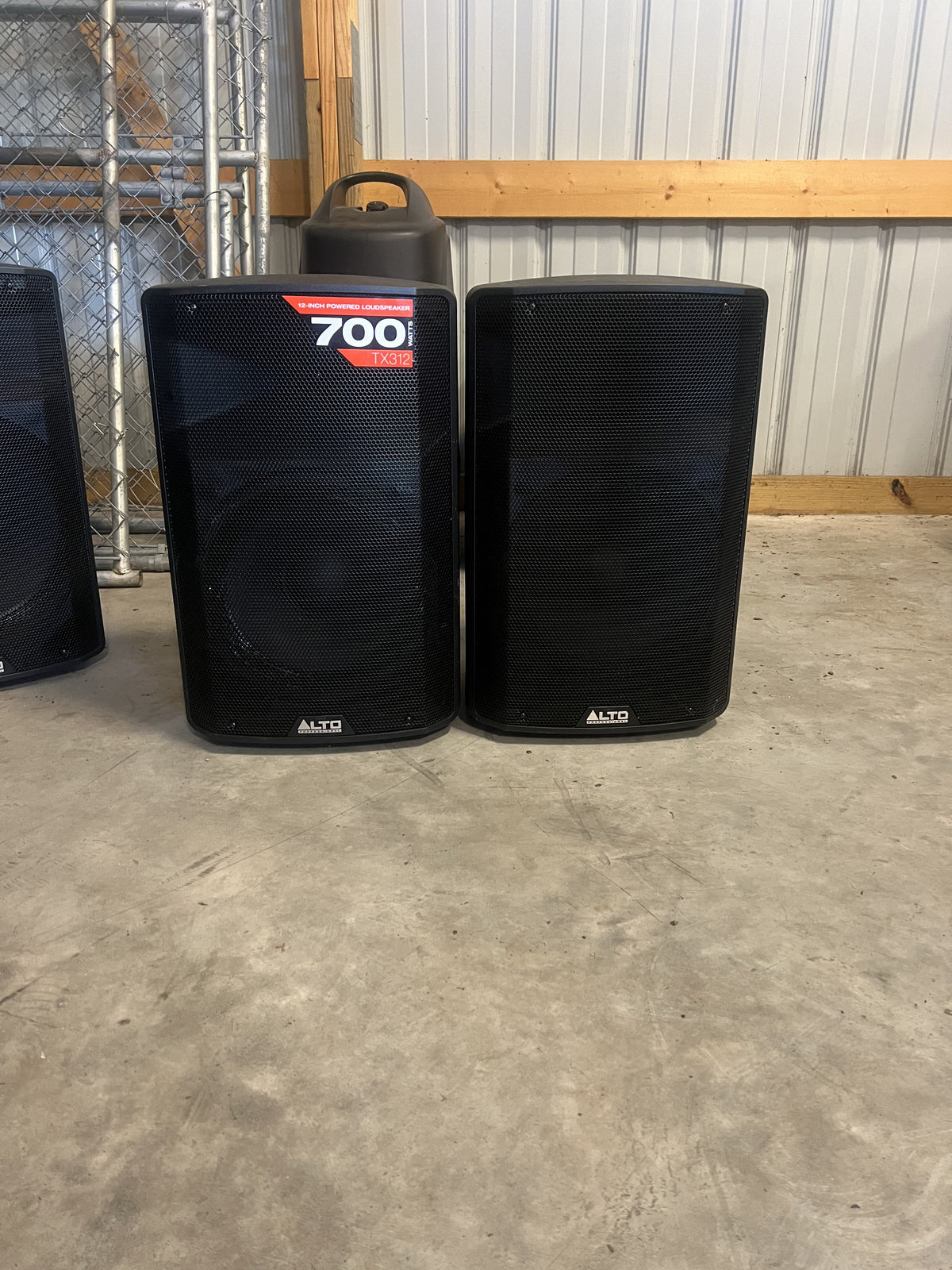

Alto Top

System Type: 2-way active ported loudspeaker

Power Output: 700 Watts peak / 350 Watts continuous (Class D power)

Drivers: 12-inch LF driver (2" voice coil) & 1-inch titanium HF compression driver

Frequency Response: 70 Hz - 20 kHz (-3 dB)

Maximum Peak SPL: 120 dB @1 m (some documentation lists up to 118 dB continuous)

Horn Coverage: 90° Horizontal x 60 Vertical (nominal)

Crossover Frequency: 2.5 kHz

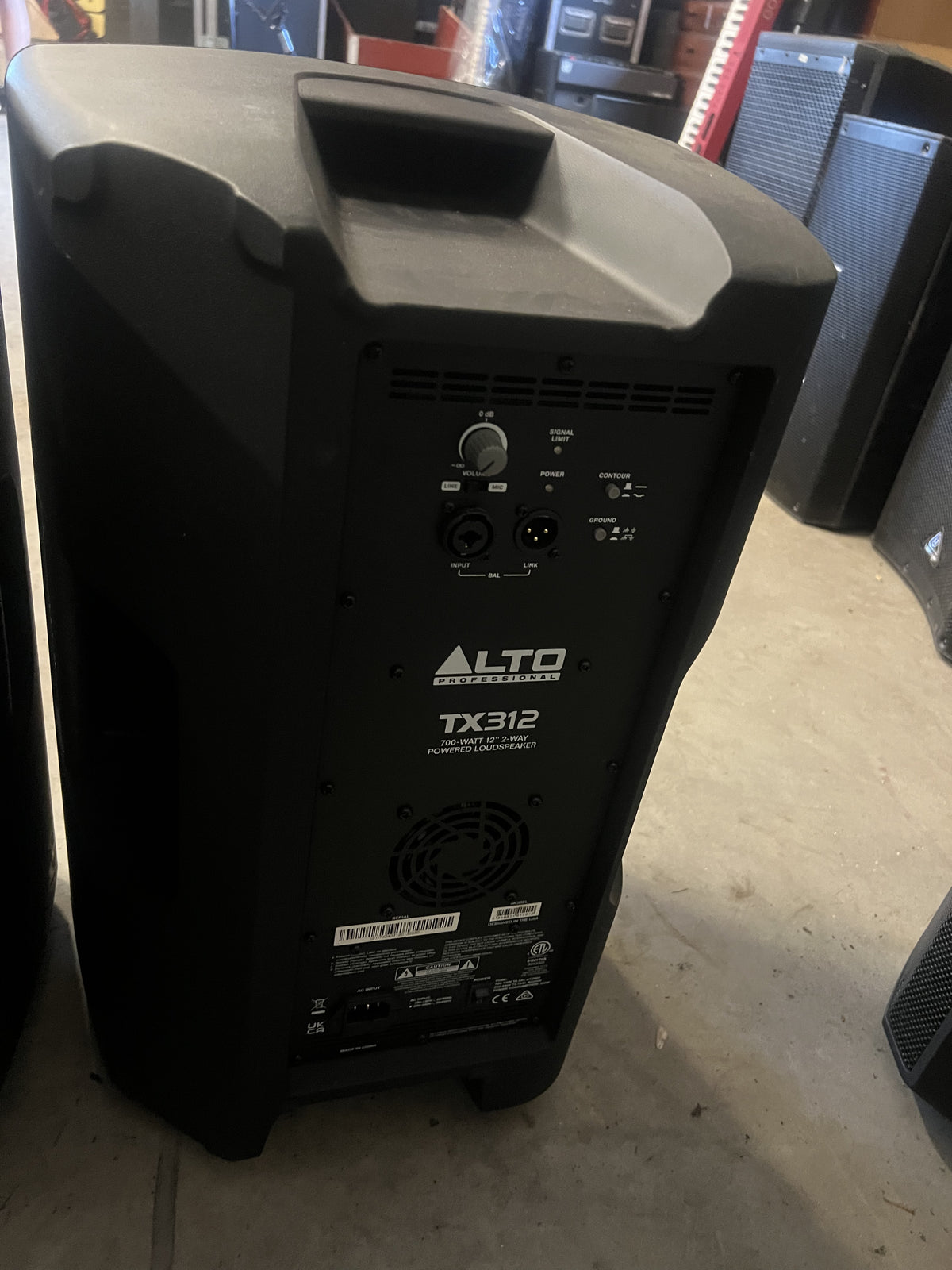

Audio Inputs: 1x balanced XLR/TRS 1/4" combo mic/line input

Audio Outputs: 1x balanced XLR link output (for daisy-chaining)

Onboard Shaping:
-Contour Switch: Adds a +3dB boost to low and high frequencies.
-Ground-Lift Switch: Removes unwanted hum or ground loop buzz,
-Hardware Control: Analog volume knob, power switch, and rear clip limiter LED indicator.

Enclosure: Multi-angle injection-molded polypropylene (trapezoidal design for mains or floor wedge use) with a full steel grille and a standard 36mm speaker pole socket.

Dimensions (H x W x D): 23.7" x 15" x 13.5" (602 mm x 381 mm x 343 mm)

Weight: 29.3 lbs (13.3 kg)
